2022/08/10
#htmlファイル(battery20220810.html)に保存 cat <<EOF> battery20220810.html <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>TABLE (PostgreSQL)</title> </head> <body> EOF psql -d xxxx -U $DBUSERNAME -h $PGHOSTNAME -H -c "SELECT to_char(dt, 'YYYY/MM/DD HH24:MI:SS') AS dt, to_char(v2, '0.000') AS \"CH3\", to_char(v1, '0.000') AS \"CH2\" FROM battery WHERE dt BETWEEN '2022-08-10 08:35:00' AND '2022-08-10 15:00:00' ORDER BY dt" >> battery20220810.html cat <<EOF>> battery20220810.html </body> </html> EOF
#js用に加工して20220810.jsに保存
echo "table=[" > 20220810.js
psql -d xxxx -U $DBUSERNAME -h $PGHOSTNAME -c "SELECT '{dt:''' || to_char(dt, 'YYYY/MM/DD HH24:MI:SS') || ''', CH3:' || v2 || ', CH2:' || v1 ||'},' FROM battery WHERE dt BETWEEN '2022-08-10 08:35:00' AND '2022-08-10 17:00:00' ORDER BY dt" >> 20220810.js
echo "];" >> 20220810.js
この20220810.jsはエラーになるので修正する。
table=[
?column? //この行を削除
--------------------------------------------------- //この行を削除
{dt:'2022/08/10 08:35:10', CH3:1.304, CH2:2.641},
=== 途中省略 ===
{dt:'2022/08/10 14:27:23', CH3:0.128, CH2:1.017},
{dt:'2022/08/10 14:28:24', CH3:2.772, CH2:2.567},
{dt:'2022/08/10 14:33:23', CH3:0, CH2:0}, //行末の,を削除
(287 行) //この行を削除
//(空白行 削除してもよい)
];

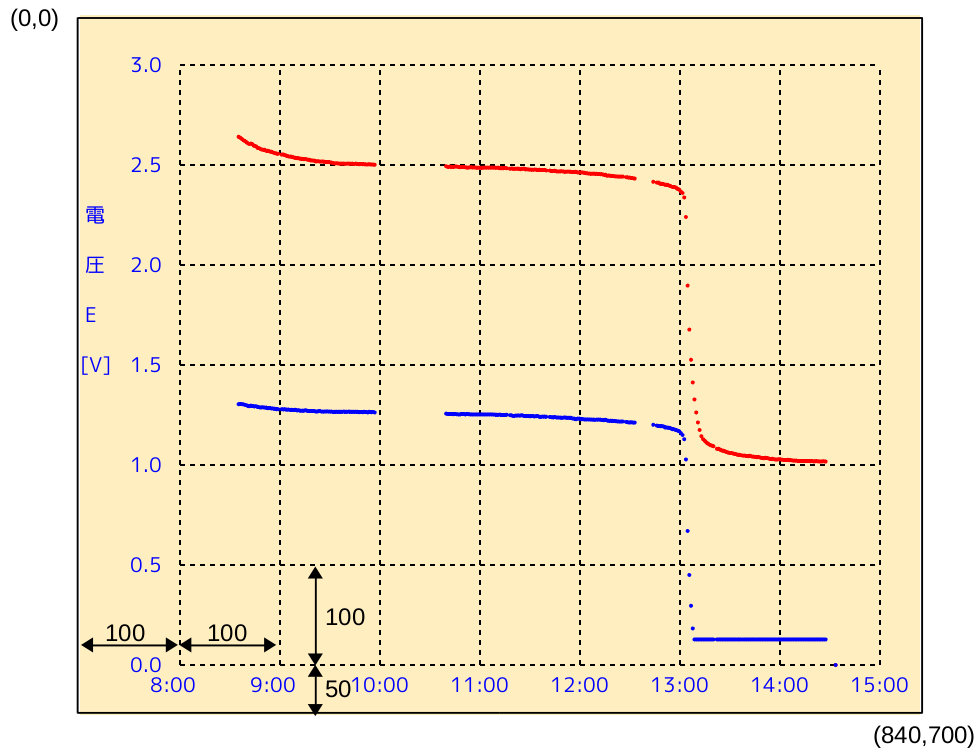

ECMAScriptでグラフを描画するため、描画ページ(graph.html)に<canvas>要素を用意する。| graph.html | graph.js | 20220810.js |
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta http-equiv="Content-Style-Type" content="text/css">
<title>ECMAScript canvas Graph</title>
<script src="./20220810.js"></script>
<script src="./graph.js"></script>
</head>
<body>
<canvas name="graph" id="mycanvas" width="840" height="700" style="background-color:#FFEEC0;">
</canvas>
<script>
var canvas = document.getElementById('mycanvas');
var Xmin=0, Xmax=Math.floor(canvas.width/100)*100;
var Ymin=canvas.height, Ymax=50;
var X0=100, Y0=Ymin-Ymax;
graph();
</script>
</body>
</html>
|
/*-- 20220810.jsはこのような感じで --*/
table=[
{dt:'2022/08/10 08:35:10', CH3:1.304, CH2:2.641},
...
{dt:'2022/08/10 15:33:23', CH3:0.000, CH2:0.000}
];
|
